System-Level Optimization of Condensers and Evaporators in Dual-Mode Ice Thermal Storage Systems

Optimizing only the condenser or evaporator alone is no longer sufficient for modern dual-mode ice thermal storage systems. To achieve higher energy efficiency, stable operation, and long-term reliability, both heat exchangers must work together through coordinated system-level engineering and intelligent control strategies.

1. Dynamic Thermal Stress Management

During switching between standard cooling and ice-making modes, HVAC equipment is frequently exposed to significant temperature fluctuations, generating considerable thermal stress inside the system. To improve operational reliability, elastic supports and expansion compensators are commonly installed between the evaporator and condenser to absorb thermal expansion displacement and reduce weld fatigue or cracking risks.

This design strategy helps dual-mode chillers maintain long-term structural stability under repeated low-temperature operating conditions, especially in large commercial and industrial ice storage applications.

2. Energy Efficiency Balancing Strategy

Under ice-making conditions, evaporators typically require a larger temperature difference (ΔT) to provide sufficient low-temperature cooling capacity. To compensate for reduced heat transfer efficiency at lower temperatures, some systems increase heat transfer surface area, helping maintain stable ice production performance and improving overall cooling efficiency.

On the condenser side, advanced systems often adopt a “variable flow rate + heat exchange circuit switching” control strategy. During partial-load operation, the system dynamically adjusts cooling water flow and activates different heat exchange zones to maintain efficient heat transfer while reducing unnecessary energy consumption.

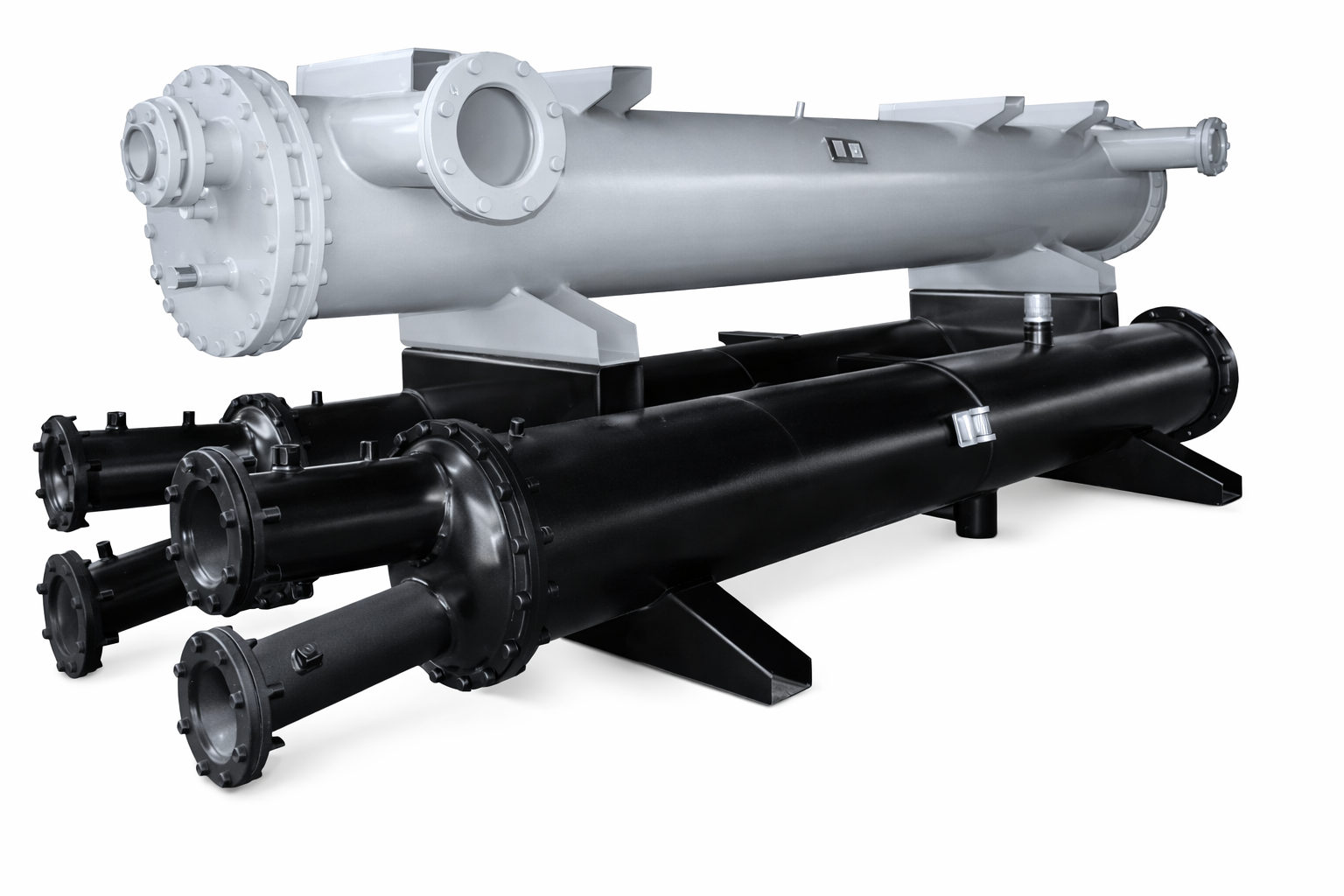

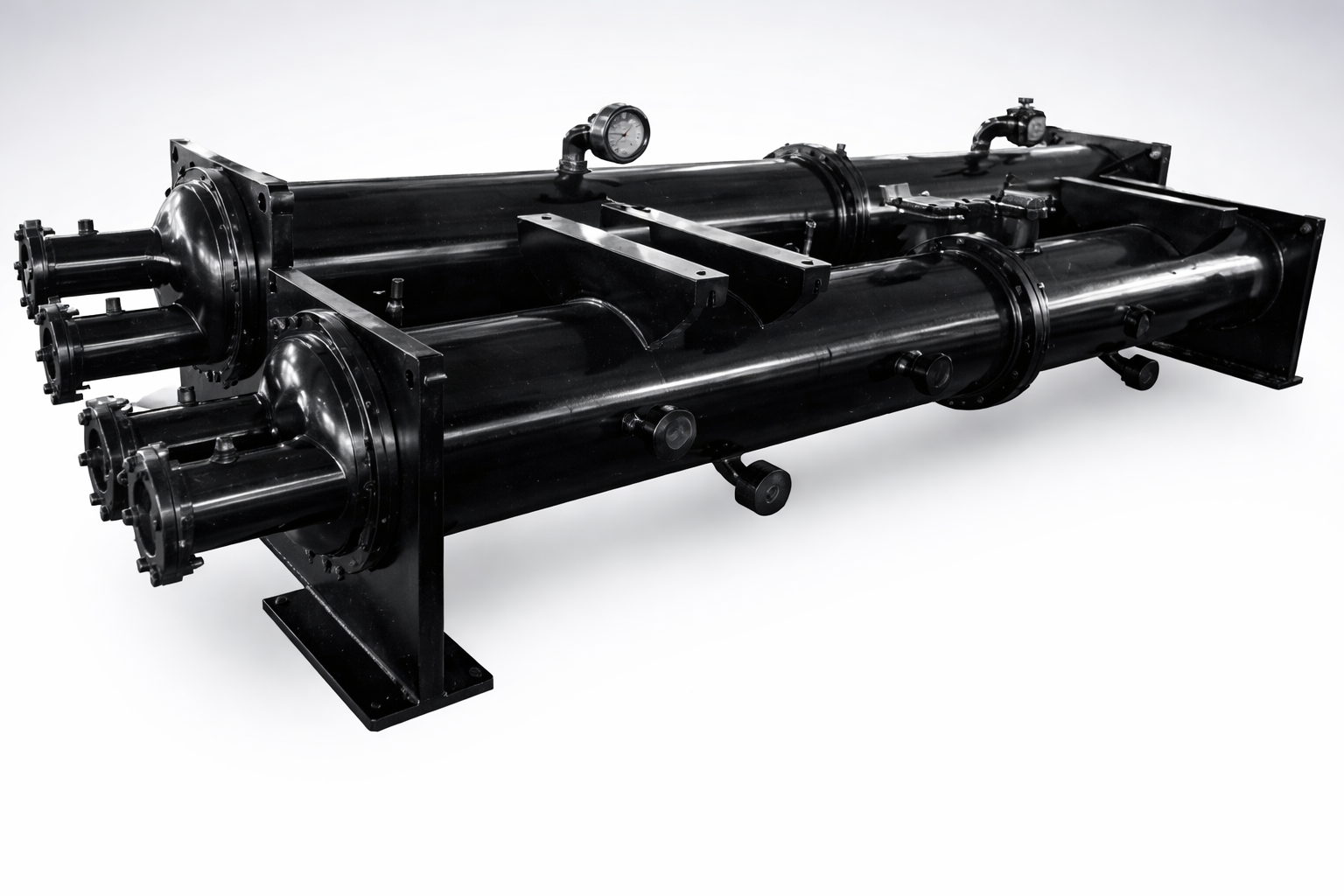

This coordinated design significantly improves the operating efficiency of shell-and-tube heat exchangers and other industrial refrigeration equipment used in ice thermal storage systems.

3. Intelligent Control Integration

Modern ice thermal storage systems increasingly integrate temperature, pressure, and flow sensors into both condensers and evaporators. These sensors continuously monitor approach temperature and dynamically regulate pump frequency and electronic expansion valve opening, improving system response speed and operational stability.

Some advanced HVAC systems are also beginning to incorporate AI algorithms and digital twin technology to predict icing trends, optimize anti-freezing cycles, and reduce ineffective energy consumption. Intelligent control technology is becoming a key factor in improving the performance of next-generation industrial chillers and energy storage systems.

Real-World Case Study: Economic Benefits of System Optimization

Project Background

A large commercial complex adopted a dual-mode ice thermal storage system with a total storage capacity of 12,000 RTh. During initial operation, evaporator icing blockage and condenser fouling reduced actual ice storage efficiency to only about 75% of the original design target.

Optimization Measures

To improve system performance, the project implemented several upgrades:

• Replaced the original condenser with a titanium tube condenser equipped with a self-cleaning system, significantly reducing fouling thermal resistance;
• Upgraded the evaporator to a multi-circuit copper-nickel plate heat exchanger, improving flow distribution and enhancing superheat control accuracy to approximately ±0.5°C;
• Added an intelligent coordinated control module to dynamically match condenser and evaporator operating conditions.

After optimization, the system achieved substantially improved operational stability, higher ice storage efficiency, lower maintenance frequency, and reduced long-term operating costs.

Future Trends in Ice Thermal Storage Heat Exchanger Design

The performance of dual-mode ice thermal storage systems fundamentally depends on efficient heat transfer management. As a result, condenser and evaporator design standards are evolving from single-component optimization toward intelligent, coordinated, and system-level innovation.

With continuous advancements in material technologies such as graphene coatings and corrosion-resistant composite materials, as well as smart control technologies including AI prediction and digital twin modeling, future ice thermal storage systems are expected to achieve even higher cooling density, faster response speed, and greater energy efficiency.

For project developers and facility owners, selecting heat exchangers that combine high-pressure durability, low-temperature efficiency, and intelligent coordinated control will be essential for maximizing the economic value and long-term performance of modern ice thermal storage systems.
